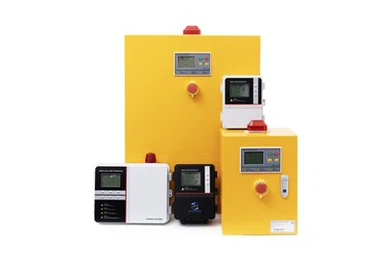

Duplex Digital Water Pump Control Vaj Huam Sib Luag



Lub tshuab twj tso kua mis nrog ob lub twj tso kua mis submersible los yog cov twj tso kua mis yog tswj los ntawm duplex digital dej twj tso kua mis tswj vaj huam sib luag.

Ib tug duplex tswj vaj huam sib luag yog feem ntau siv nyob rau hauv lub tshuab uas yuav tsum tau ib tug thaub qab twj tso kua mis nyob rau hauv cov ntaub ntawv ntawm lub thawj twj tso kua mis tsis ua hauj lwm. Peb cov vaj huam sib luag Duplex yuav hloov lub voj voog ntawm ob lub twj tso kua mis, kom ntseeg tau tias ob qho tib si tseem ua haujlwm rau lub sijhawm ntawm lub twj tso kua mis lub neej. Lub vaj huam sib luag yuav suab lub tswb rau dej siab thiab tig rau lwm lub twj tso kua mis yog tias ib lub twj tso kua mis tsis ua haujlwm. Muaj hom kev teeb tsa no lav tias koj yuav muaj lub twj tso kua mis uas ua haujlwm tas li.





· Pib hom: DOL (Direct on line)

· Qty ntawm tswj twj tso kua mis: duplex twj tso kua mis tswj

· Txhawb cov khoom siv ntsuas sab nraud:

Float switch (ON/OFF)

Hloov siab (ON / OFF)

Kev sojntsuam kua

0.5-4.5V Qib Transmitter/Pressure transmitter (qauv PCH 32 nkaus xwb)

4-20mALevel Transmitter/Pressure transmitter (qauv PCH 32 Plus nkaus xwb)

· Rated input voltage: AC380V-400V 50HZ/60HZ, Peb theem

· Rated tso zis zog:0.75kw-4kw(1hp-5.5hp)/5.5kw-11kw(7.5hp-15hp)/15kw( 20 hp)







Qhuav khiav kev nyab xeeb nrog tsis muaj sensor

Tiv thaiv lub twj tso kua mis nres.

tiv thaiv overloading.

nyob rau hauv qhov chaw tiv thaiv voltage.

Kev tiv thaiv dhau voltage.

Kev tiv thaiv rau lub twj tso kua mis rov pib dua.

Lub zog tawm tswv yim thiab cov zis muaj kev tiv thaiv los ntawm kev qhib theem.

Kev tiv thaiv lub zog tawm tswv yim tiv thaiv theem thim rov qab Phase imbalance tiv thaiv rau cov input voltage.

Kev tiv thaiv overheating (xav tau PTC los yog built-in tshaj kub sensors nyob rau hauv lub twj tso kua mis).

Kev tiv thaiv cov dej xau hauv lub twj tso kua mis (tsuas yog rau cov qauv PCH 32 Plus; yuav tsum muaj lub tshuab xau).

tiv thaiv corrosion ntawm lub twj tso kua mis ncej





• Siv rau kev hloov dej los ntawm lub tank qis mus rau lub tank sab saud los ntawm kev sojntsuam kua lossis ntab hloov
• Siv rau kev txhawb nqa los ntawm kev hloov siab & siab tank.
• Siv rau kev nqa dej phwj tuaj los ntawm kev sojntsuam kua lossis ntab hloov
• Siv rau lub twj tso kua mis nrog piggy-rov qab ntab hloov
• Siv rau kev hloov dej los ntawm lub tank qis mus rau lub tank sab saud los ntawm qib transmitter
• Siv rau kev txhawb nqa los ntawm lub siab transmitter
• Siv rau kev nqa dej phwj los ntawm qib transmitter





0.

4-20mA Theem transmitter / Siab transmitter (qauv PCH32 Plus nkaus xwb)

Float hloov (ON / OFF teeb liab)

Hloov siab (ON / OFF teeb liab)

Kev sojntsuam kua

PT100 kub sensor (sib cais PT100 kub sensor expansion module yuav tsum tau)

MEMS cua siab transmitter (sib cais MEMS cua siab transmitter yuav tsum tau)





1. Lub teeb liab tso zis muaj ob lub ntsiab lus qhuav.
2. Ob pab pawg siv cov chaw nres nkoj ib ntus.
3. Cov chaw nres nkoj dej ntws tau muab faib ua ob pawg.

4. Ib qho analog teeb liab chaw nres nkoj nrog 4-20 mA tso zis yog muaj rau kev sib txuas ntawm universal transmitter.
5. Tso cai rau ob qhov chaw nres nkoj PT100.
6. Tau tshaj qhov hluav taws xob thoob ntiaj teb





JIT SMART tsuas yog tsom rau kev tsim, tsim, tsim, thiab kev lag luam twj tso kua mis tiv thaiv thiab tswj vaj huam sib luag rau cov twj ntse. Nrog rau ntau tshaj 20 xyoo ntawm kev txawj ntse nyob rau hauv lub twj tso kua mis tswj kev lag luam, peb tau paub zoo nyob rau hauv cov kev xav tau ntawm cov neeg siv thiab twj tso kua mis manufacturers thiab muaj peev xwm muab cov dej twj tso kua mis tswj thiab kev tiv thaiv kev daws teeb meem.



Peb yog ib lub tuam txhab hluas piv rau keeb kwm ntawm kev txhim kho lub twj tso kua mis, tab sis peb muaj kev tsav tsheb thiab kev tsim khoom los muab peb cov neeg tau txais kev tshaj lij dej twj tso kua mis tswj thiab kev tiv thaiv kev daws teeb meem. Peb cov kev paub dhau los vim peb tau tsim, tsim, thiab muag cov twj tso kua mis ntse rau ntau tshaj 20 xyoo.
