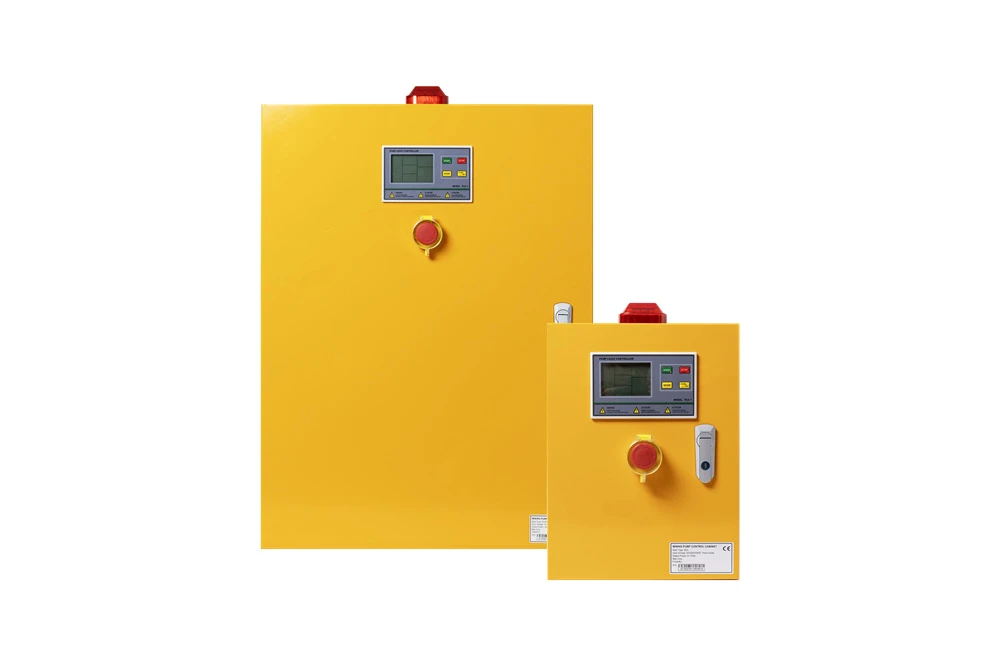

2 Pump Intelligent Pump Control Vaj Huam Sib Luag

Hom Lub Npe: OEM

Tus Qauv Zauv: PCH32 PLUS

Ua haujlwm hauv: 3 Theem 220v / 380v / 415v

Ua hauj lwm twj tso kua mis:075-15kw





Txhawb lub ntiaj teb voltage los ntawm 220v-415v

Tswj thiab tiv thaiv 2 lub twj tso kua mis



Plastic enclosure: IP 65

MCB / AC Contactor: CHNT

Hom: Duplex Alternating Control Vaj Huam Sib Luag

Rated voltage: 120/208/240V/380V/415V AC

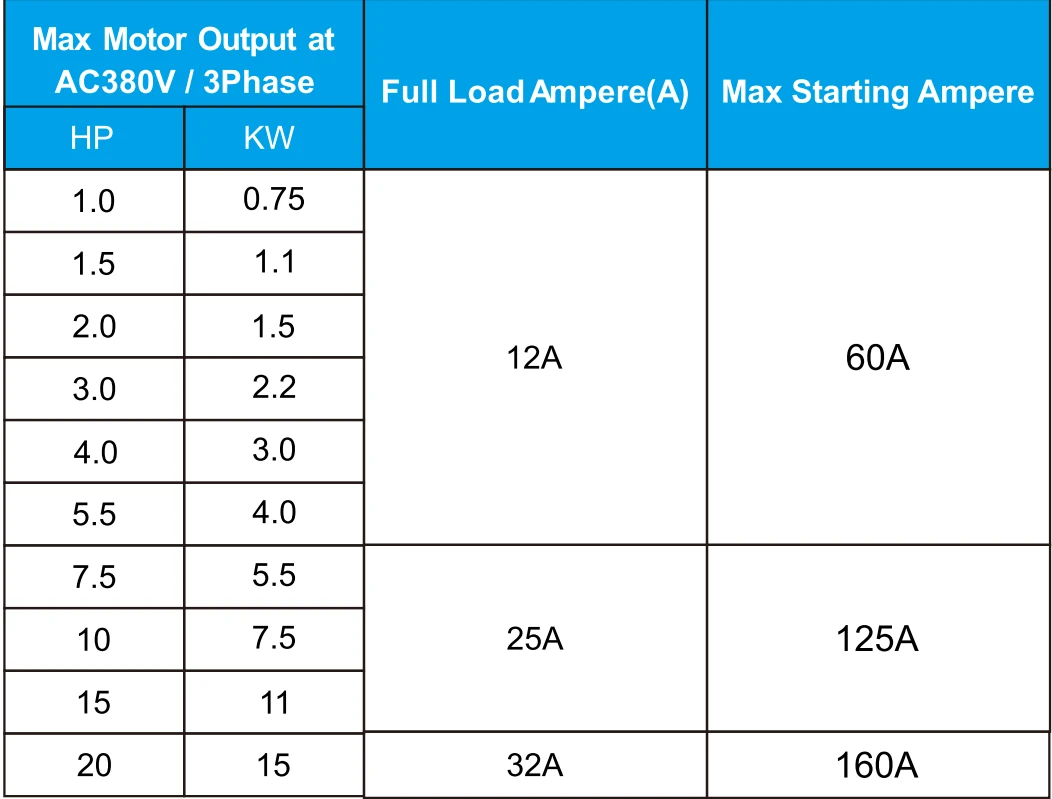

Amps: 12 txog 32 A

Tau tshaj Pump Hom: Sump / Booster / borehole twj tso kua mis

Tus naj npawb ntawm cov twj tso kua mis tswj: 2

Qhov chaw: Sab hauv / Sab nraum zoov

Cov ntaub ntawv pov thawj: IP65

Qhov loj me: 342 * 292 * 119mm



• Main twj tso kua mis / standby twj tso kua mis hloov
• Main twj tso kua mis / standby twj tso kua mis hloov tawm tsam malfunctions
• Standby twj tso kua mis koom ua haujlwm yog tias xav tau





• Txhua qhov kev tiv thaiv muaj nuj nqi tuaj yeem pab lossis lov tes taw ntawm nws tus kheej
• Pump zaum kawg tsib txhaum cov ntaub ntawv tso tawm
• Pump accumulative khiav lub sij hawm displaying
• Ntsiab xovxwm khawm xauv thiab xauv (settable)
• Dynamic LCD qhia cov ntaub ntawv khiav dej num
• Memory Function thaum fais fab tuag & fais fab rov qab
• A / B twj tso kua mis ua haujlwm pab lossis lov tes taw ua haujlwm
• Pump start time delay (Time settable)
• Pump nres lub sij hawm ncua (Time settable)
• Ntev teeb liab kis tau tus mob (1500meters max)
• RS485 kev sib txuas lus chaw nres nkoj
• Tam sim no DC24V audible & pom lub tswb (qauv PCH 32 Plus nkaus xwb)
• Parameter zaub mov muaj los tswj lub twj tso kua mis thiab cov maub los hauv kev ua haujlwm zoo tshaj plaws
• Ib tug phooj ywg tib neeg-tshuab interface yog muab los ntawm LCD module
• Tag nrho cov khoom siv hluav taws xob nrog kev ruaj ntseg zoo, cov khoom zoo yog ruaj khov thiab txhim khu kev qha



Voltage thiab tam sim no tau, siv high precision tsis tshua muaj suab nrov ua hauj lwm amplifier, tam sim no transformer kuj siv high precision transformer, thiab tsis muaj adjustable Cheebtsam, xyuas kom meej lub sij hawm ntev kev lag luam.



Lub ntsiab nti siv lub peev xwm loj dua, nrog rau qhov chaw txaus los ua kom tiav cov neeg siv khoom tshwj xeeb kev xav tau, tuaj yeem ua ntau yam kev cai:

xws li Pib ncua sij hawm thiab nres ncua sij hawm teem caij

Timer + Sensor integrated hom.



EMC kev ua tau zoo, tuaj yeem nyob ruaj khov thiab txhim khu kev qha txawm tias muab tso rau ze ntawm zaus inverter thiab muaj zog cuam tshuam cov cuab yeej, thiab ntau yam kev tiv thaiv ua haujlwm los lav kev nyab xeeb thiab kev ntseeg siab ntawm cov khoom no.
