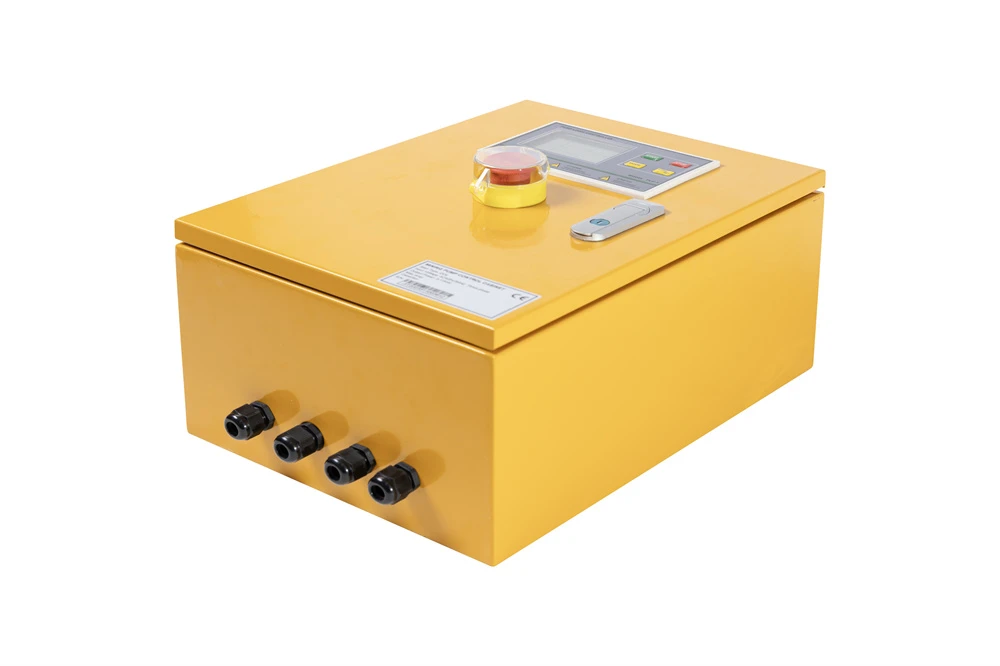

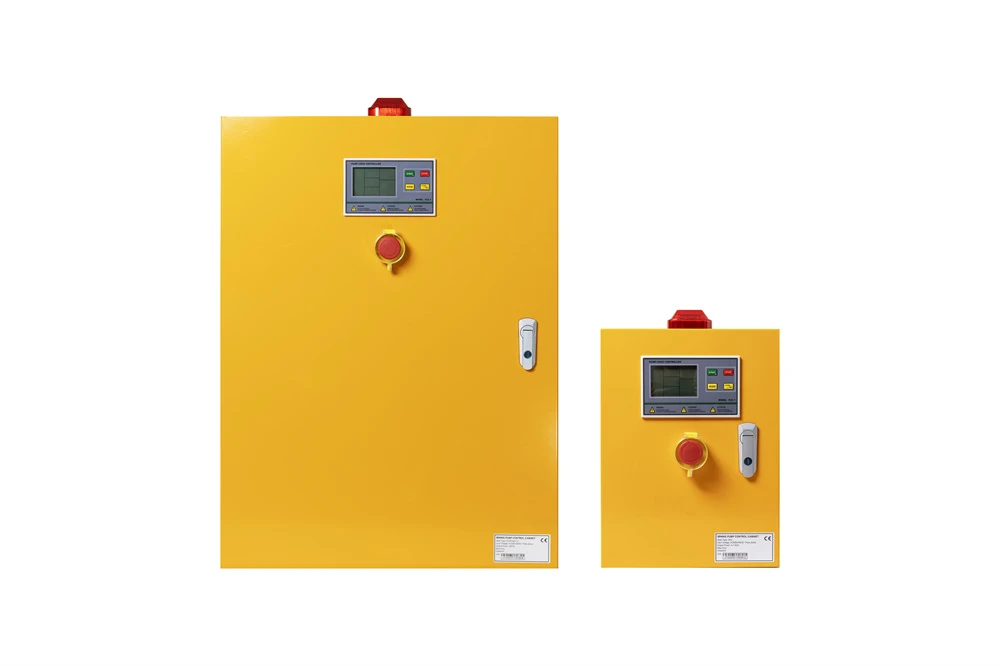

Duplex Digital Pump Controller





JIT SMART tsuas yog tsom rau kev tsim, tsim, tsim, thiab kev lag luam twj tso kua mis tiv thaiv thiab tswj vaj huam sib luag rau cov twj ntse. Nrog rau ntau tshaj 20 xyoo ntawm kev txawj ntse nyob rau hauv lub twj tso kua mis tswj kev lag luam, peb tau paub zoo nyob rau hauv cov kev xav tau ntawm cov neeg siv thiab twj tso kua mis manufacturers thiab muaj peev xwm muab cov dej twj tso kua mis tswj thiab kev tiv thaiv kev daws teeb meem.



Peb yog ib lub tuam txhab hluas piv rau keeb kwm ntawm kev txhim kho lub twj tso kua mis, tab sis peb muaj kev tsav tsheb thiab kev tsim khoom los muab peb cov neeg tau txais kev tshaj lij dej twj tso kua mis tswj thiab kev tiv thaiv kev daws teeb meem. Peb cov kev paub dhau los vim peb tau tsim, tsim, thiab muag cov twj tso kua mis ntse rau ntau tshaj 20 xyoo.







Tau nyob rau hauv lub twj tso kua mis tswj kev lag luam rau ntau tshaj 20 xyoo, peb muaj peev xwm mus integrate cov kev xav tau kev pab ntawm ntau lub twj tso kua mis manufacturers, distributors, thiab cov neeg siv los ntawm kev sib txuas lus zoo. Tsis tas li ntawd, peb tuaj yeem tsim thiab kho qhov tsim cov twj tso kua mis tswj nrog ntau lub zog kom tau raws li kev tswj hwm thiab kev tiv thaiv kev xav tau ntawm ntau tus neeg siv khoom raws li cov kev xav tau ntawm ntau yam; nyob rau lub sijhawm no, peb tuaj yeem muab peb cov neeg siv khoom pheej yig thiab cov kev daws teeb meem rau kev tswj lub twj tso kua mis thiab kev tiv thaiv;





Hom: Dual-Switching Control Vaj Huam Sib Luag

Rated Voltage: 208, 240, 380, thiab 415V AC

Amps muaj li ntawm 9 mus rau 32 A

Pump Type Compatibility: Borehole, Booster, thiab Sump

Ob lub twj tso kua mis tswj tau.

Qhov chaw: Sab hauv / Sab nraum zoov; Hom Kev Tiv Thaiv: IP65; Qhov Loj: 342 * 292 * 119 mm



muaj xws li twj tso kua mis stalling, qhuav khiav, overflow, overload, thiab under/overvoltage tiv thaiv.



Peb theem imbalanced tiv thaiv, qhib theem tiv thaiv, thiab theem reversal tiv thaiv.Kev tiv thaiv tiv thaiv dej los thiab overheating.

.Ib qho los ntawm ib qho, A thiab B twj tso kua mis hloov hauv kev ua haujlwm.



Yog tias cov dej nce siab, cov twj A thiab B yuav ua haujlwm ib txhij.



Pump A tuaj yeem hloov mus rau Pump B thaum muaj kev ua haujlwm tsis zoo.



Qauv	PCH32 plus
Hluav taws xob Configuration	duplex alternating twj tso kua mis controller
Input Voltage & Output zog	Ib theem, AC220-240V Peb theem, AC380-460V
Tso zis zog	0 37-5.5kw (peb theem, AC220-240V) 0 37-15kw (peb theem, AC380-460V
Pib hom	DOL
Qty tswj twj tso kua mis	Duplex twj tso kua mis
Main Protection Function
Tshaj load tiv thaiv los ntawm ampere	Yog lawm
Pump motor nres	Yog lawm
Qhuav khiav nrog sensor dawb	Yog lawm
Hauv qab / dhau voltage	Yog lawm
Qhib theem	Yog lawm
Peb theem tsis sib npaug	Yog lawm
Theem rov qab	Yog lawm
Rov pib dua	Yog lawm
Lub tshuab nqus dej	Yog lawm
Tshaj kub	Yog lawm
Lwm Txoj Haujlwm
Pump kawg tsib faults cov ntaub ntawv displaying	Yog lawm
Pump accumulative khiav lub sij hawm displaying	Yog lawm
RS485 chaw nres nkoj	Yog lawm
Pump ncej anti-xeb (kev siv dej phwj)	Yog lawm
Daim ntawv thov
Hloov dej los ntawm ntab hloov / kua sensor	Yog lawm
Pressure boosting los ntawm kev hloov siab	Yog lawm
Dej phwj los ntawm ntab hloov / kua sensor	Yog lawm
Cov dej phwj tuaj nrog piggy rov qab ntab hloov	Yog lawm
Kev txhawb siab los ntawm 4-20mA siab transmitter	Yog lawm
Dej phwj los ntawm 4-20mA qib transmitter	Yog lawm
Tswj hom
Kev ceev hom	Yog lawm
Nws pib hom	Yog lawm
Mix hom (ib lub twj tso kua mis hauv hom pib, lwm lub twj tso kua mis hauv phau ntawv hom)	Yog lawm
Lwm yam feature
Pump ua haujlwm dhau sijhawm hloov pauv	Yog lawm
Kev tiv thaiv muaj nuj nqi pab kom & lov tes taw teeb tsa	Yog lawm
Tag nrho cov kev tiv thaiv rov qab tuaj yeem raug teeb tsa ua unrecoverable	Yog lawm





Ntxiv cov yam ntxwv.Memory Function thaum lub hwj chim down thiab fais fab rov qab

PT100 kub sensor expansion module yog ib qho kev xaiv muaj nuj nqi expansion module.

Lub LCD module muaj cov neeg siv-phooj ywg interface ntawm tib neeg thiab tshuab.

Txhua yam khoom siv hluav taws xob yog ruaj khov thiab vam khom, thiab cov khoom lag luam muaj zog.

Dawb thiab dub yog ob lub xim vaj tse muaj.

Overflow ceeb toom rau kev nqa thiab siv cov dej phwj tuaj.

RS485 raws tu qauv rau kev sib txuas lus.

Qhov chaw teem tseg rau kev teeb tsa ntawm MEMS cua siab transmitter, uas tuaj yeem siv rau lub kaw lus uas nqa cov dej phwj tuaj.

DC24V pom thiab hnov ​​suab ceeb toom.

Muaj ob qhov chaw tiv tauj qhuav qhuav muaj.
