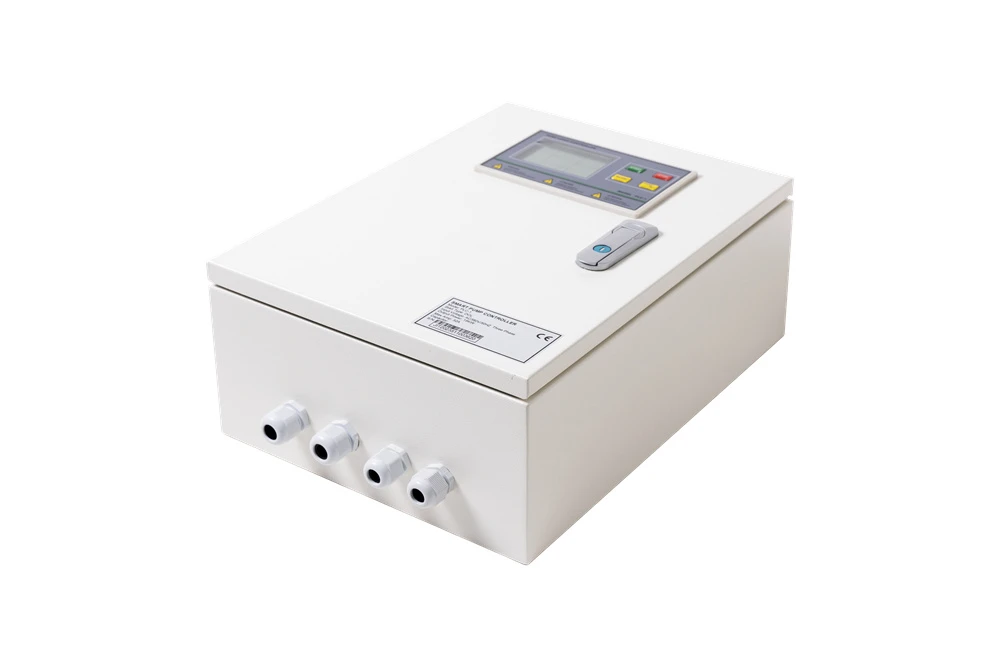

2 Pump Intelligent Pump Controller



Peb txaus siab rau koj xaiv peb cov khoom, thiab peb cog lus tias yuav muab kev pabcuam zoo rau koj.

Lub intuitive, programmable tswj thiab kev tiv thaiv system rau centrifugal, pipeline, duplex, thiab peb-theem sib sib zog nqus zoo submersible twj, ntawm lwm yam, yog lub ntse Pump Controller.



Tus maub los tuaj yeem ua haujlwm hauv ntau txoj hauv kev los ntawm kev siv ntau yam khoom siv hluav taws xob. Kev sojntsuam lossis sensor tsis pub dawb hauv lub qhov dej yog tus yam ntxwv tseem ceeb uas ua rau tus maub los sib nrug ntawm tus qauv On/Off twj tso kua mis tswj lub thawv. Peb cov qauv tsim tshwj xeeb tshem tawm qhov xav tau rau kev sojntsuam los yog sensor hauv lub qhov dej thiab muab kev tiv thaiv zoo heev thiab muaj kev ntseeg siab tiv thaiv lub twj tso kua mis qhuav.



Hom Lub Npe: OEM

Tus Qauv Zauv: PCH32 PLUS

Ua haujlwm hauv: 3 Theem 220v / 380v / 415v

Ua hauj lwm twj tso kua mis:075-15kw

Plastic enclosure: IP 65

MCB / AC Contactor: CHNT

Hom: Duplex Alternating Control Vaj Huam Sib Luag

Rated voltage: 120/208/240V/380V/415V AC

amp:9a32 ua

Tau tshaj Pump Hom: Sump / Booster / borehole twj tso kua mis

Tus naj npawb ntawm cov twj tso kua mis tswj: 2

Qhov chaw: Sab hauv / Sab nraum zoov

Cov ntaub ntawv pov thawj: IP65

Qhov loj me: 342 * 292 * 119mm

Daim ntawv hloov pauv: los ntawm Dip hloov

Daim ntawv thov suav nrog:

• Siv rau kev hloov dej los ntawm lub tank qis mus rau lub tank sab saud los ntawm kev sojntsuam kua lossis ntab hloov
• Siv rau kev txhawb nqa los ntawm kev hloov siab & siab tank.
• Siv rau kev nqa cov dej phwj tuaj los ntawm kev sojntsuam kua lossis ntab hloov
• Siv rau lub twj tso kua mis nrog piggy-rov qab ntab hloov
• Siv rau kev hloov dej los ntawm lub tank qis mus rau lub tank sab saud los ntawm qib transmitter (4-20mA)
• Siv rau kev txhawb nqa los ntawm lub tshuab xa hluav taws xob siab (4-20mA)
• Siv rau kev nqa dej phwj los ntawm qib transmitter (4-20mA)

Yam khoom	Kev tiv thaiv	Tus nqi	Lus ceeb toom	Hom txhaum
1	Dry Run tiv thaiv trip ampere	75% ntawm Calibrated khiav ampere	Hauv kev teeb tsa zaub mov	Rov qab ua txhaum
2	Dry Run tiv thaiv lub sij hawm teb	5s	Hauv kev teeb tsa zaub mov
3	Dry Run tiv thaiv lub sijhawm rov qab los	45m	Hauv kev teeb tsa zaub mov
4	Tshaj Load tiv thaiv tawm mus ampere	130% Calibrated khiav ampere	Hauv kev teeb tsa zaub mov	Rov qab ua txhaum
5	Tshaj Load tiv thaiv kev mus ncig teb lub sijhawm	5S (lub sijhawm hloov pauv)	tsau hauv software
6	Overload tiv thaiv rov qab lub sijhawm	4m	Hauv kev teeb tsa zaub mov
7	Pump Stalled tiv thaiv mus ncig ampere	180% ntawm Calibrated khiav ampere	Hauv kev teeb tsa zaub mov	Unrecovery txhaum
8	Pump Stalled tiv thaiv mus ncig teb chaws lub sij hawm	1s	tsau hauv software
9	Nyob rau hauv Voltage tiv thaiv mus txawv tebchaws voltage	304v	Hauv kev teeb tsa zaub mov	Rov qab ua txhaum
10	Nyob rau hauv Voltage tiv thaiv mus ncig teb chaws lub sij hawm	6s	tsau hauv software
11	Nyob rau hauv Voltage tiv thaiv lub sij hawm rov qab	4m	Hauv kev teeb tsa zaub mov
12	Over Voltage tiv thaiv tawm mus voltage	437v	Hauv kev teeb tsa zaub mov	Rov qab ua txhaum
13	Tshaj Voltage tiv thaiv kev mus ncig teb lub sijhawm	6s	tsau hauv software
14	Tshaj Voltage tiv thaiv lub sijhawm rov qab	4m	Hauv kev teeb tsa zaub mov
15	Qhib theem			Unrecovery txhaum
16	Theem rov qab			Unrecovery txhaum
17	Tshaj dhau			Rov qab ua txhaum
18	Tshaj temp			Rov qab ua txhaum
19	Cov dej ntws tawm			Unrecovery txhaum





Muaj ntau tshaj 20 xyoo ntawm kev txawj ntse hauv kev tsim, kev tshawb nrhiav, thiab kev nce qib ntawm cov kws tshaj lij dej twj tso kua mis tswj,

Qhov tshwm sim ntawm peb cov kev siv zog yog peb cov kav dej phwj tuaj, PCH series. Nws muaj tag nrho cov peev xwm thiab cov yam ntxwv uas peb cov neeg siv khoom xav tau, thiab nrog ob peb qhov kev hloov pauv yooj yim, nws tuaj yeem ua haujlwm ntawm ntau lub tshuab.

Nws cov neeg siv-phooj ywg teeb tsa ua kom ntev lub neej ntawm lub twj tso kua mis, thiab nws txoj kev teeb tsa ib lub pob ua haujlwm zoo khaws cia lub twj tso kua mis.

Nws lub tswb nrov tshaj plaws yuav ceeb toom rau tus neeg siv khoom thaum muaj qhov nce nrawm ntawm cov dej ntim los ntawm ib txhij ua kom lub suab nrov sab nraud thiab hais lus.

Nws kuj tseem tuaj yeem tswj xyuas qhov pib thiab nres ntawm cov twj tso kua dej los ntawm kev tuav ob qho tib si hloov thiab analog inputs.





1). Ib txwm ua kua theem hauv lub sump

Cov kua theem nce mus txog Kev Ntsuas 3# (Float Switch A: Up Level), tswj lub thawv yuav xaj ib lub twj tso kua mis rau

khiav; cov kua theem poob mus rau Kev Tshawb Fawb 2# (Float Switch A: Down Level), ib lub twj tso kua mis nres khiav;

Lub thawv tswj yuav hloov ob lub twj tso kua mis khiav tawm thaum cov kua theem sib txawv ntawm

Kev sojntsuam 2# & Kev sojntsuam 3# (Float Hloov A: nce qib- theem qis)



2). Ntxiv ntws nyob rau hauv lub sump

Thaum ib lub twj tso kua mis khiav mus rau cov kua dej, cov kua dej hauv cov sump tseem nce mus rau Kev Tshawb Fawb 4 #

(Float Switch B: Up Level), tswj lub thawv yuav kom lwm lub twj tso kua mis khiav ib txhij mus rau

Cov kua dej, kom txog thaum cov kua dej poob mus rau Kev Ntsuas 2# (Float Switch A&B: Down Level), ob lub twj tso kua mis

yuav tsis tso tseg.



3). Overflow nyob rau hauv lub sump

thaum ob lub twj tso kua mis khiav ib txhij, cov kua theem hauv cov sump tseem nce mus rau Kev Tshawb Fawb

5 # (Float Switch C: nce qib), tswj lub thawv yuav suab ceeb toom ceeb toom; Thaum cov kua theem qis

mus rau Probe 5# (Float Switch C Down Level), tswj lub thawv nres lub suab ceeb toom ceeb toom



4) Auto Patrol (Anti-xeb) muaj nuj nqi

Hauv lub xeev Auto, yog tias lub thawv tswj xyuas ob lub twj tso kua mis tsis khiav rau kaum hnub, tswj cov cuab yeej

yuav hais kom lub twj tso kua mis A khiav rau 3 vib nas this thiab nres, tom qab 10 vib nas this ib ntus, tswj ntaus ntawv yuav

xaj twj B kom khiav 3 vib nas this thiab nres.

Auto Patrol tuaj yeem tiv thaiv lub twj tso kua mis rusty thiab impeller jammed vim lub sijhawm ntev tsis khiav
