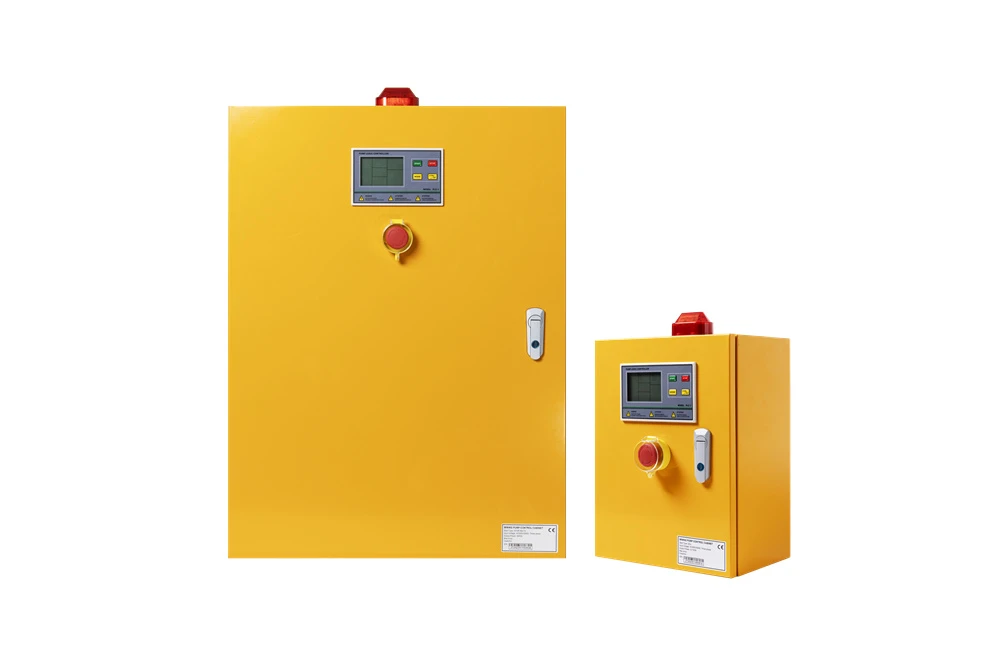

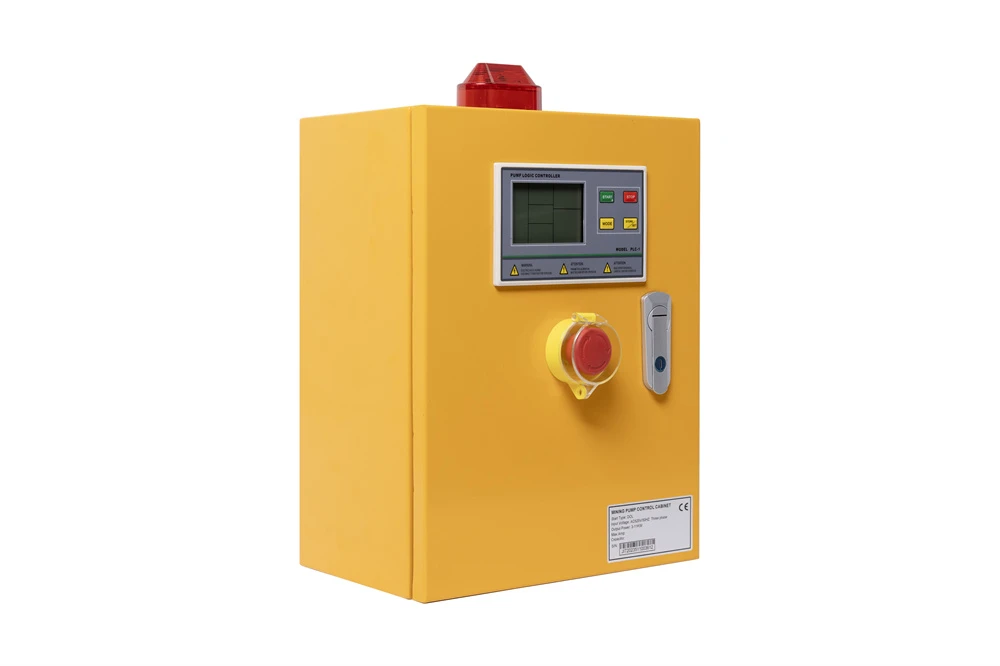

2 Pump Controller



Thaum ob lub twj tso kua mis yuav tsum hloov thiaj li muab txhua qhov sib npaug ntawm lub sijhawm ua haujlwm, Series PCH 2 PUMP CONTROLLER yog ua haujlwm. Kev sib npaug ntawm ob lub twj tso kua mis ua tau los ntawm kev sib hloov ntawm cov khoom txuas ntxiv lub neej ua haujlwm ntawm cov twj.





Ob qho tib si hauv tsev thiab kev lag luam cov dej phwj tuaj nrog rau cov dej phwj tuaj ntawm chav ua noj thiab chav dej raug tshem tawm thiab kho los ntawm cov kws tshaj lij lim dej 2 lub twj tso kua mis tswj. Nws yog tsim los ntawm kev ruaj ntseg zoo thiab me me, compact qauv. Nws lub peev xwm los cuam tshuam sai sai thaum muaj kev ua haujlwm tsis zoo lossis kev hem thawj ua rau nws yooj yim rau kev siv thiab ua haujlwm.



Nws cov duab LCD ua rau nws yooj yim nkag siab tias lub twj tso kua mis ua haujlwm li cas thiab qib dej ntawm lub sijhawm no. Lub twj tso kua mis ua haujlwm yog npaj kom muaj kev sib npaug. Pump A pib khiav thawj zaug, thiab Pump B pib khiav zaum ob. Lub twj tso kua mis kuj muaj cov yam ntxwv los tiv thaiv xeb kom tsis txhob xeb yog tias nws tsis siv rau lub sijhawm ntev. Nws yuav qhib lub twj tso kua mis dual thiab emit ib tug ceeb toom nyob rau hauv cov ntaub ntawv ntawm ib tug overflow.



Kev khiav haujlwm du ntawm thaj chaw thiab kev lag luam yog ua kom ntseeg tau los ntawm qhov kev tsim kho thiab kev cia siab rau cov kav dej phwj tuaj. Nws yog ib qho tseem ceeb ntawm txhua qhov chaw nyob thiab cov qauv kev lag luam kom tswj tau cov dej phwj zoo thiab tu cev. Cia peb txais tos kev vam meej hauv kev txaus siab ntawm kev noj qab haus huv thiab ib puag ncig zoo dua qub.



Main technical yam ntxwv
Tswj tus yam ntxwv	ob chav ua kua theem tswj
	tswj siab
Tswj txoj kev	Phau ntawv / Auto
Kua theem tswj tus yam ntxwv	pulse electrode sojntsuam & ntab hloov
Siab tswj tus yam ntxwv	siab hloov (n / c) & siab tank
Cov ntaub ntawv tseem ceeb
Rated tso zis zog	xa mus rau daim ntawv teev npe
Rated input voltage	xa mus rau daim ntawv teev npe
Trip teb lub sij hawm ntawm overload	5sec-5min
Ncig teb chaws lub sij hawm qhib theem	2 sec
Trip teb lub sij hawm luv luv Circuit Court	＜0.1sec
Trip teb lub sij hawm ntawm under / over voltage	5 sec
Trip teb lub sij hawm ntawm qhuav khiav	6 sec
Rov qab lub sij hawm ntawm overload	4 min
Rov qab lub sij hawm ntawm nyob rau hauv / tshaj voltage / peb theem unbalance	4 min
Lub sijhawm rov ua haujlwm qhuav	45 feeb
Trip voltage ntawm over voltage	115% rated input voltage
Trip voltage ntawm under voltage	80% rated input voltage
Cov kua theem hloov mus deb	Tsawg dua los yog sib npaug li 1000m
Cov ntaub ntawv tseem ceeb ntawm installation
Ua haujlwm kub	-25 degree -- +55 degree
Ua haujlwm av noo	20% - 90%RH
Qib kev tiv thaiv	IP54
Txhim kho txoj haujlwm	Ntsug
Chav ntsuas qhov ntev (L x W x H)	342 * 292 * 119 hli
Unit hnyav (net)	2.8kg ib
Kev lees paub rau lub dav hlau RS485 data
Physics Interface	RS485 Bus Interface: asynchronism semiduplex
Baud tus nqi	1200bps, 2400bps, 4800bps, 9600bps Default: 9600bps
Hom kev cai	MODBUS raws tu qauv (RTU)



Hom Lub Npe: OEM

Tus Qauv Zauv:

Hom: Duplex Alternating Control Vaj Huam Sib Luag

Rated voltage: 120/208/240V/380V/415V AC

amp:9a32 ua

Tau tshaj Pump Hom: Sump / Booster / borehole twj tso kua mis

Tus naj npawb ntawm cov twj tso kua mis tswj: 2

Qhov chaw: Sab hauv / Sab nraum zoov

Cov ntaub ntawv pov thawj: IP65

Qhov loj me: 342 * 292 * 119mm



Txhua qhov kev tiv thaiv feature yog nws tus kheej tuaj yeem qhib lossis ua tsis taus.

Pump xeem tsib txhaum keeb kwm yog qhia.

Qhia txog lub sijhawm ua haujlwm ntawm lub twj tso kua mis

Nias lub xauv thiab xauv (kho tau) khawm khawm.

Cov ntaub ntawv hais txog kev ua haujlwm ntawm lub twj tso kua mis yog pom ntawm lub dynamic LCD.

Memory Function thaum lub hwj chim-tawm thiab fais fab rov qab.

A / B twj tso kua mis tuaj yeem qhib lossis kaw.

Lub sij hawm settable rau lub twj tso kua mis pib ncua.Time settable rau ncua sij hawm nyob rau hauv lub twj tso kua mis nres.

ntev teeb liab kis tau tus mob (qhov siab tshaj ntawm 1500 meters).

RS485 chaw nres nkoj rau kev sib txuas lus.

Tam sim no muaj DC24V pom thiab hnov ​​lub tswb (qauv PCH 32 Plus nkaus xwb).

Txhawm rau kom lub twj tso kua mis thiab cov maub los ua haujlwm ntawm lawv qhov kev ua haujlwm siab tshaj plaws, cov ntawv qhia zaub mov yog siv tau.

LCD module muab kev yooj yim rau tib neeg-tshuab interface.

Txhua yam khoom siv hluav taws xob yog qhov ruaj khov thiab vam khom, thiab cov khoom zoo yog ruaj khov thiab.
