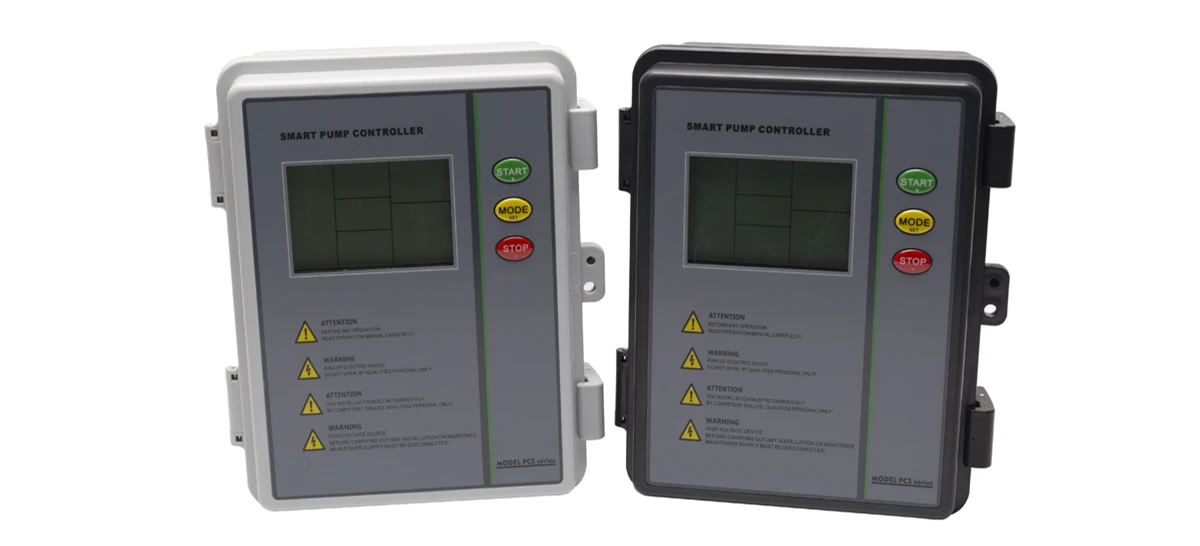

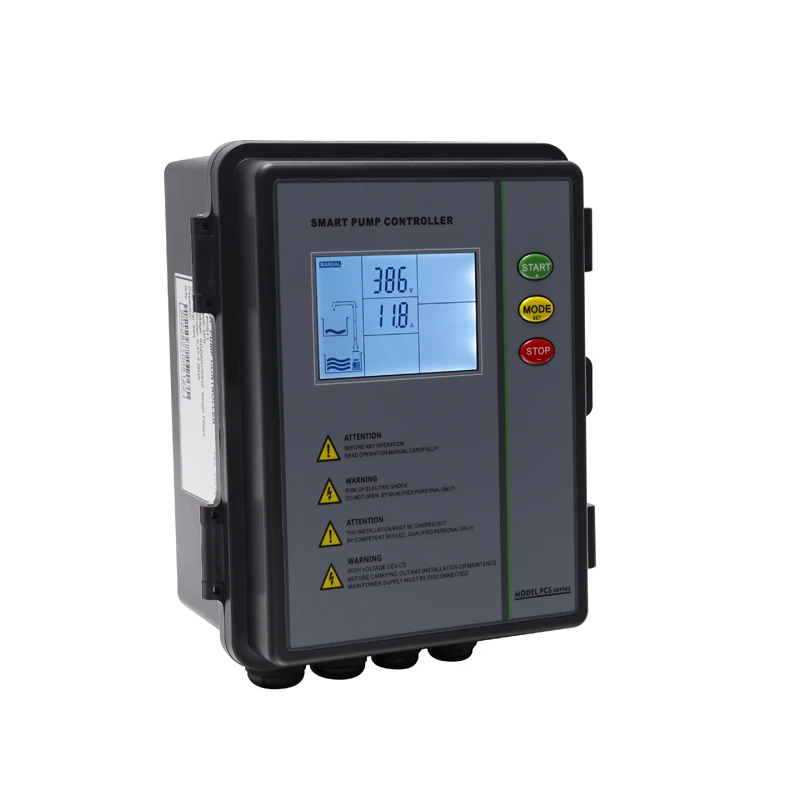

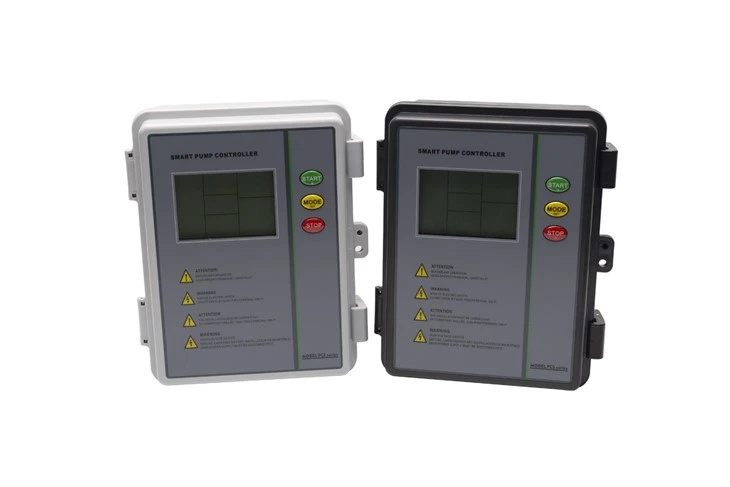

Digital Submersible Pump Controller
PCS31 yog ib qho yooj yim siv, yooj yim thiab txhim khu kev qha digital submersible twj tso kua mis maub los uas tuaj yeem siv dav los tswj thiab tiv thaiv lub twj tso kua mis sib sib zog nqus, twj tso kua mis, twj tso kua mis tus kheej, twj centrifugal, twj tso kua mis, thiab lwm yam.
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia
PCS31 yog ib qho yooj yim siv, yooj yim thiab txhim khu kev qha digital submersible twj tso kua mis maub los uas tuaj yeem siv dav los tswj thiab tiv thaiv lub twj tso kua mis sib sib zog nqus, twj tso kua mis, twj tso kua mis tus kheej, twj centrifugal, twj tso kua mis, thiab lwm yam.
Cov ntaub ntawv tseem ceeb
- Pib hom: DOL (Direct on line)
- Qty ntawm tswj twj tso kua mis: ib lub twj tso kua mis tswj
- Txhawb cov khoom siv sab nraud: ntab hloov (ON / OFF), hloov siab (ON / OFF), ua kua sojntsuam, PT100 kub sensor (kwv yees PT100 kub sensor expansion module yuav tsum tau)
Rated Input Voltage & Output Fais Fab
|
Rated input voltage |
Rated tso zis zog (KW / HP) |
Lub cev muaj zog ntsuas tam sim no (A) |
|
AC380V-400V 50HZ/60HZ, Peb theem |
0 75-4kw / 1-5.5hp |
12A |
|
5.5-7.5kw / 7{4}}hp |
18A |
|
|
11kw / 15hp |
25A |
|
|
15kw / 20hp |
32A |
* customization input voltage, thov hu rau cov chaw tsim khoom
Kev tiv thaiv muaj nuj nqi
- Qhuav khiav tiv thaiv nrog sensor dawb
- Pump stalled tiv thaiv
- Kev tiv thaiv overload
- Hauv kev tiv thaiv hluav taws xob
- Over voltage tiv thaiv
- Qhib theem tiv thaiv
Daim ntawv thov
- Siv rau kev hloov dej los ntawm lub tank qis mus rau lub tank sab saud los ntawm kev sojntsuam kua lossis ntab hloov
- Siv rau kev txhawb nqa los ntawm kev hloov siab & siab tank.
- Siv rau kev nqa dej phwj tuaj los ntawm kev sojntsuam kua lossis ntab hloov
- Siv rau kev tswj lub voj voog ntshiab timer (tsis muaj kev tswj xyuas qhov zoo)
- Siv rau kev tswj qhov kub thiab txias los ntawm PT100 kub sensor (sib cais PT100 kub sensor expansion module yuav tsum tau)
Lwm yam nta
- Pump zaum kawg tsib txhaum cov ntaub ntawv tso tawm
- Pump accumulative khiav lub sij hawm displaying

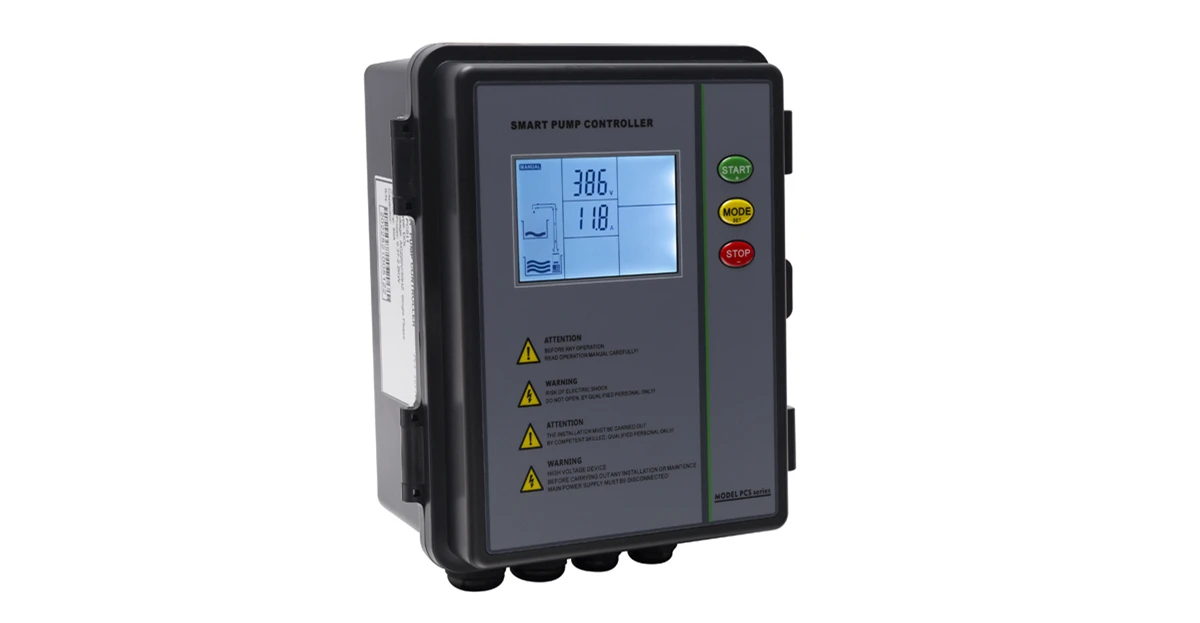

- Dynamic LCD qhia cov ntaub ntawv khiav dej num
- Nco muaj nuj nqi thaum fais fab tuag & Fais fab rov qab

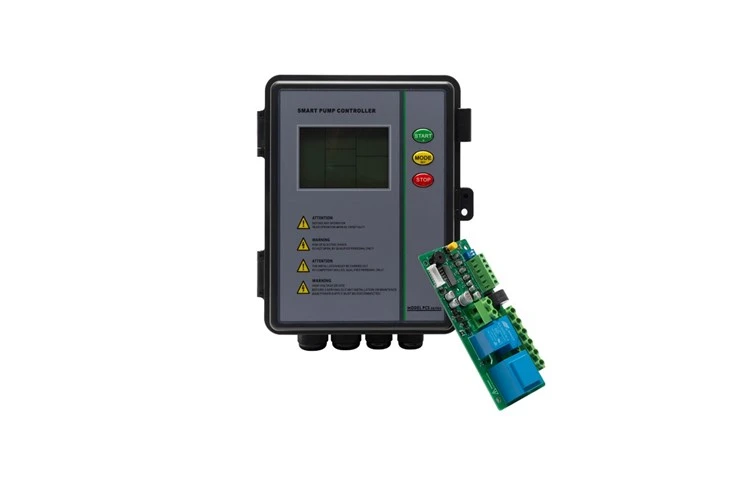

- Optional function expansion module, suav nrog PT100 kub sensor expansion module
- Ib tug phooj ywg tib neeg-tshuab interface yog muab los ntawm LCD module
- Tag nrho cov khoom siv hluav taws xob nrog kev ruaj ntseg zoo, cov khoom zoo yog ruaj khov thiab txhim khu kev qha
Main Installation Data
- Ua haujlwm kub: -25 degree -- 55 degree
- Ua hauj lwm av noo: 20%-90%RH, tsis condensing
- Kev tiv thaiv qib: IP67
- Mounting hom: Phab ntsa mounting
