Intelligent Submersible Pump Controller
Ib theem, AC110V
Ib theem, AC220-240V
Peb theem, AC380-460V
Peb theem, AC220-240V
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia

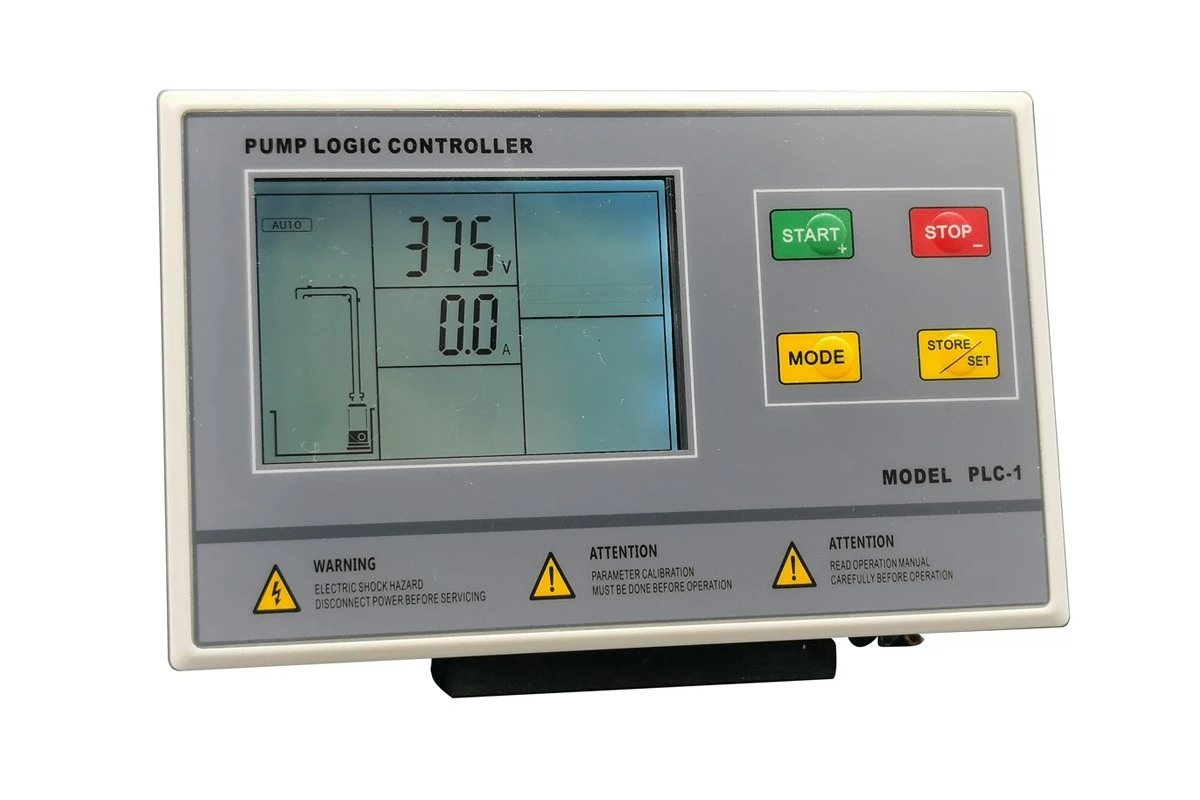

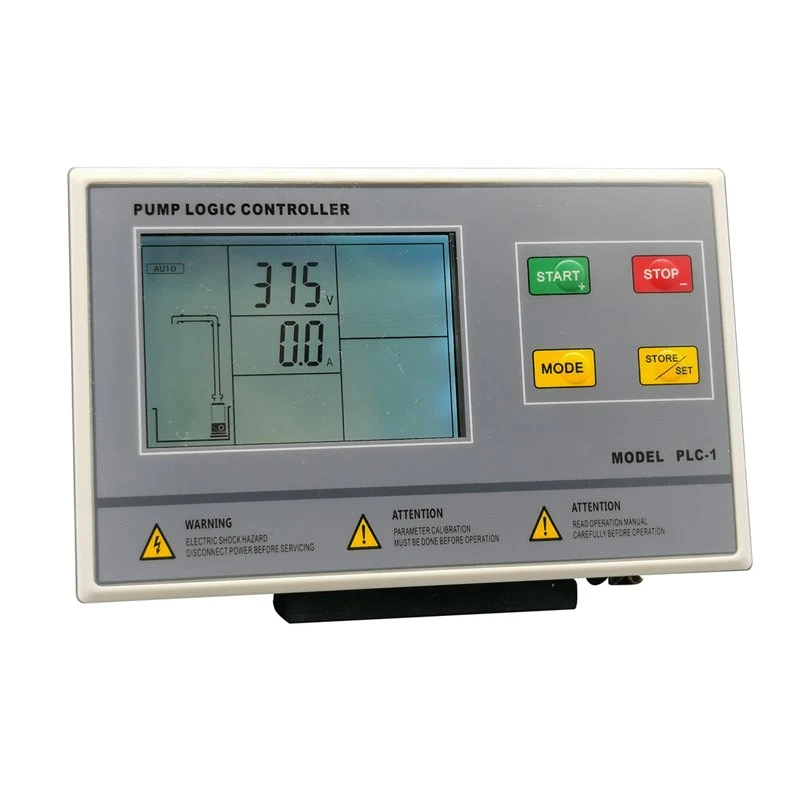

PLC -1 3 ntse submersible twj tso kua mis tswj
Input Voltgae & Output zog:
Ib theem, AC110V
Ib theem, AC220-240V
Peb theem, AC380-460V
Peb theem, AC220-240V
Tso zis zog
0 1-5.5kw (ib theem, AC110V)
0 05-5.5kw (ib theem, AC220-240V)
0 37-5.5kw (peb theem, AC220-240V)
0 37-260kw (peb theem, AC380-460V
Pib hom: DOL, Y / Δ, Soft start, Auto coupling
Qty tswj twj tso kua mis: 1
Main Protection Function
Tshaj load tiv thaiv los ntawm ampere
Pump motor nres
Qhuav khiav nrog sensor dawb
Hauv qab / dhau voltage
Qhib theem
Peb theem tsis sib npaug
Theem rov qab
Rov pib dua
Lub tshuab nqus dej
Tshaj kub
Lwm Txoj Haujlwm
Pump kawg tsib faults cov ntaub ntawv displaying
Pump accumulative khiav lub sij hawm displaying
RS485 chaw nres nkoj
Pump ncej anti-xeb (kev siv dej phwj tuaj)
Daim ntawv thov
Hloov dej los ntawm ntab hloov / kua sensor
Siab boosting los ntawm lub siab swicth
Dej phwj los ntawm ntab hloov / kua sensor
Cov dej phwj tuaj nrog piggy rov qab ntab hloov
Kev txhawb siab los ntawm 4-20mA siab transmitter
Dej phwj los ntawm 4-20mA qib transmitter
Tswj hom
Kev ceev hom
Nws pib hom
Auto thiab Manual
Lwm yam Feature
Tag nrho cov kev tiv thaiv rov qab tuaj yeem raug teeb tsa ua unrecoverable
Reserved roj teeb installation qhov chaw, txhawb lub sij hawm contro (LCD module customization yuav tsum tau)
