Ib Leeg Tso Khoom Tswj thiab Tiv Thaiv Box

Nws sawv cev rau kev tshaj tawm cov twj tso kua mis digital uas tau tsim kho kom zoo nkauj, ncaj ncees ua haujlwm. Cov cuab yeej no yog engineered rau ntau cov ntawv thov, ua rau nws cov twj tso kua mis zoo tagnrho, nqus cov twj tso kua mis, cov raj dej pipeline, nrog rau lwm cov khoom siv cuam tshuam.

Xa kev nug

Kev xa khoom sai
Quality Assurance
24/7 Kev Pabcuam Cov Neeg Siv Khoom

Khoom Taw qhia

1.Tsis muaj 4 thawj cov ntawv thov:

** nce thiab nqis dej tso dej rau dej **: Daim ntawv thov no tshwj xeeb tshwj xeeb los tswj cov dej ntawm cov tso dej sab saud thiab qis dua.

** Daim Ntawv Thov Dej Siab **: Daim Ntawv Thov Khoom Thib Ob Piav Qhia Txog Cov Khoom Siv Dej Los Ntawm Kev Tswj Siab, Kev Txuas Nrog Hloov Pauv.

** Cov quav dej phwj tuaj **: Daim ntawv thov thib peb uas nyob rau kev tshem tawm ntawm cov dej khib nyiab.

** Lub sijhawm ntshiab kom tswj hwm **: Qhov kawg ntawm kev tswj hwm, tso cai rau cov neeg siv sijhawm teem sijhawm ua haujlwm twj tso ua haujlwm raws lub sijhawm sib nrug.

Hauv cov ntsiab lus, plaub daim ntawv thov-nce thiab nqis dej paug, dej paug, thiab cov kev daws teeb meem dej ntshiab rau cov kev tswj hwm dej. Txhua daim ntawv thov yog tsim los daws cov kev cov nyom thiab cov cai tau, txhim khu kev qha, thiab cov dej kom ruaj khov hla kev sib txawv ntawm cov khoom lag luam sib txawv thiab chaw ib puag ncig.

Daim ntawv thov	2 ncej hloov	Kev piav txog
1	0 0	Tank rau tank.
2	1 1	Kev tswj cov khoom siv hluav taws xob tswj los ntawm siab hloov.
3	0 1	Siv dej los ntawm theem sensor.
4	1 0	Sij hawm pib thiab nres. [Cancels tawm Sensor Terminal]
1 ncej hloov (Yam ua tau)
5	1	Thermal tswj

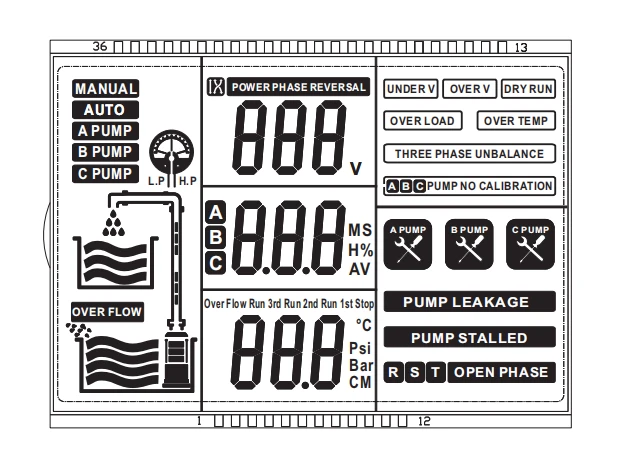

2. LCD tso saib.

Lub kaw lus muab cov kev saib xyuas kev saib xyuas los ntawm kev nthuav tawm cov hluav taws xob thiab tam sim no nyob rau hauv lub sijhawm tiag tiag, tso cai rau cov neeg siv hluav taws xob uas tseem ceeb rau kev ua haujlwm ntawm cov taub dej. Cov ntaub ntawv hais txog cov ntaub ntawv tiag tiag ua kom ntseeg tau tias txhua qhov kev hloov pauv tuaj yeem txheeb xyuas kom sai thiab yog li txhim kho tag nrho cov kev ntseeg tau ntawm lub system.

Ntxiv nrog rau cov zaub uas muaj feem xyuam thiab tam sim no, cov khoom siv ua haujlwm ntawm cov twj tso kua dej tau nthuav tawm hauv hom kev sib xyaw ua ke. Qhov no txhais tau tias cov neeg siv tau pom cov txheej txheem ua haujlwm ntawm cov twj tso kua mis los ntawm kev nkag siab ntawm cov xeeb ntxwv lossis cov khoom siv anquuitual, uas muab ib qho kev nkag siab zoo ntawm nws cov kev ua tau zoo.

Tsis tas li ntawd, cov kab ke yog nruab nrog kev ua txhaum-kuaj tshuab uas txhim kho nws cov peev xwm ntawm kev kuaj mob. Thaum muaj kev ua phem lossis txawv txav, lub cim sib txawv ntawm lub interface yuav pib nyem, kos duab rau qhov teeb meem. Qhov kev ntsuas pom kev no ua qhov ntsuas tau nrawm ntawm cov teeb meem tseem ceeb, overcurrent, tsis muaj zog, ua rau cov neeg siv tshuab nrawm. Los ntawm kev sib xyaw ua ke cov nta no, lub kaw lus tsis tsuas yog saib xyuas cov twj tso kua mis txoj kev ua tau zoo tab sis kuj ua kom muaj kev cuam tshuam kom tiv thaiv kev puas tsuaj ntxiv lossis downtime.

Zuag qhia tag nrho, qhov kev sib xyaw ua ke ntawm cov ntaub ntawv ntawm lub sij hawm tiag tiag, thiab kev ua txhaum ntawm cov cim tsim muaj ib puag ncig. Nws caters rau ob tug kws tshaj lij kev paub uas yuav tsum muaj cov ncauj lus kom pom thiab cov ntaub ntawv ntshiab thiab siv tau kom muaj kev ua haujlwm kom haum rau cov taub dej.

product-643-472

3. Kev ua haujlwm theem pib

Cov kev tiv thaiv tseem ceeb los ntawm parameter calibartion

Tom qab kev teeb tsa thiab txuas cov khoom tuaj, tawm

rau lub cev muaj zog thiab xaiv cov kev hloov pauv hloov mus rau daim ntawv thov. Nws

ib qho tseem ceeb kom ua qhov ntsuas hluav taws xob txhawm rau muab

Cov kev tiv thaiv uas tsim nyog rau lub twj tso kua mis

Kauj ruam 1: Hloov mus phau ntawv hom yog tias nws yog nyob rau hauv Auto hom los ntawm nias

MODE khawm, kom paub tseeb twj tso tawm.

Kauj ruam 2: Nias lub khawm Pib kom khiav lub twj tso kua mis, kom paub tseeb tias cov

TWJ yog daim duab tam sim no nyob ze nws cov rated tam sim no thiab yog nqa

dej. Kev ntsuas hluav taws xob tseem yuav tsum muaj kev txwv

Kauj ruam 3: Tom qab paub txog tej yam hauv Kauj Ruam 2, nias thiab tuav lub sijhawm

khawm kom txog thaum koj hnov lub suab beep thiab chaw tso kua mis nres. Tsis muaj

Cov lus qhia Caliber ntawm LCD screen yuav tam sim no tsis tshwm sim.

Qhov no qhia tau tias kev ntsuas hluav taws xob yog tam sim no ua tiav.

Ywg

Thaum lub twj tso kua mis tau rov qab kho dua tom qab txij nkawm lossis tus tshiab

Twj yog ntsia, tus neeg siv yuav tsum lwv cov qub parameter

Kev ntsuas tshuaj thiab kev ntsuas hluav taws xob tshiab yuav tsum tau nqa tawm.

Qhov no yuav tsum tau ua tiav thaum twg tso kua mis

kho los yog lub twj tso kua mis tshiab tau nruab, dhau los

Cov tsis tas yuav tsum muab lwv ua ntej lub tsev

yog rov ua dua tshiab. Ua raws li cov lus qhia hauv qab no

mus lwv cov parameter calibration:

Nias lub hom yuam sij hloov mus rau phau ntawv phau ntawv

Yog tias nws yog nyob rau hauv Auto hom, nco ntsoov lub twj tso kua mis tsis yog

khiav. Nias lub nres yuam sij kwv yees li 3

SECs thiab tso tawm thaum chav tsev ua "beep"

lub suab.

Chav tsev tam sim no rov qab mus rau lub Hoobkas nqis, "Tsis muaj caliber

"Kos npe yuav pib ntsais muag lub LCD Screen. Rau re

Kev ntsuas tshuaj, ua raws cov lus qhia raws li

"Kev Ntsuas".

Lub khawm

Kev ua haujlwm F ntawm phau ntawv mus rau Auto, pib rau phau ntawv

Hom

Chaw ua yeeb yam

[Parameter 012Teeb rau 00]- phau ntawv mus pib / pib rau phau ntawv

[Parameter 012Teeb rau 01]- Txhua cov nyees khawm xauv rau hauv hom pib. Kom deactivate tuav "hom" rau 5sec. TWJ yuav nres, thiab maub los yuav hloov mus rau phau ntawv hom.

Lub khawm	Kev phaisHauvSiv tes
Pib	Twj tso kua mis yuav tsum pib yog tias tsis khiav.
Nres	Twj tso kua mis yuav tsum nres yog tias khiav.
Nres ces hom	Cov zaub no qhia txog tsib daim ntawv teev tsis ua tiav.
Nres ces pib	Cov zaub qhia tau ua kom muaj kev sib tw ua haujlwm.
Txhawm rau kom muaj lub twj tso kua mis thiab lub cev muaj zog yog kev tiv thaiv nws yog qhov tseem ceeb rau calibrate cov maub los tswj kom sai li sai tau thaum lub twj tso kua mis tau khiav ua haujlwm. Ua calibration tom qab txhua lub teeb tsa lossis kev ua haujlwm txij nkawm.
Pib Lossis Khw khawm	Parameter calibration: Hauv phau ntawv hom xovxwm "pib", muab lub sijhawm twj tso kua mis kom khiav raws li nws yuav nquag ces tuav "pib" (kwv yees li 5-10} sec) lossisNias lub "khw" khawm (khawm nyob rau ntawm cov cap tseem ceeb nrog daj Cap). Tus maub los yuav ua ib lub suab "DI". Tus maub los yuav tsum yog qhov ntsuas kom muaj qhov tam sim no rau lub cev muaj zog.
Nres	Parameter lwv: Nco ntsoov tso tawm tau nres ces tuav "nres" kom txog thaum tus maub los ua rau "DI" lub suab. (Tuav rau kwv yees li 5-10} sec). Tus maub los yuav tsum tau tam sim no tau tshem tawm tag nrho cov kev sib piv.
