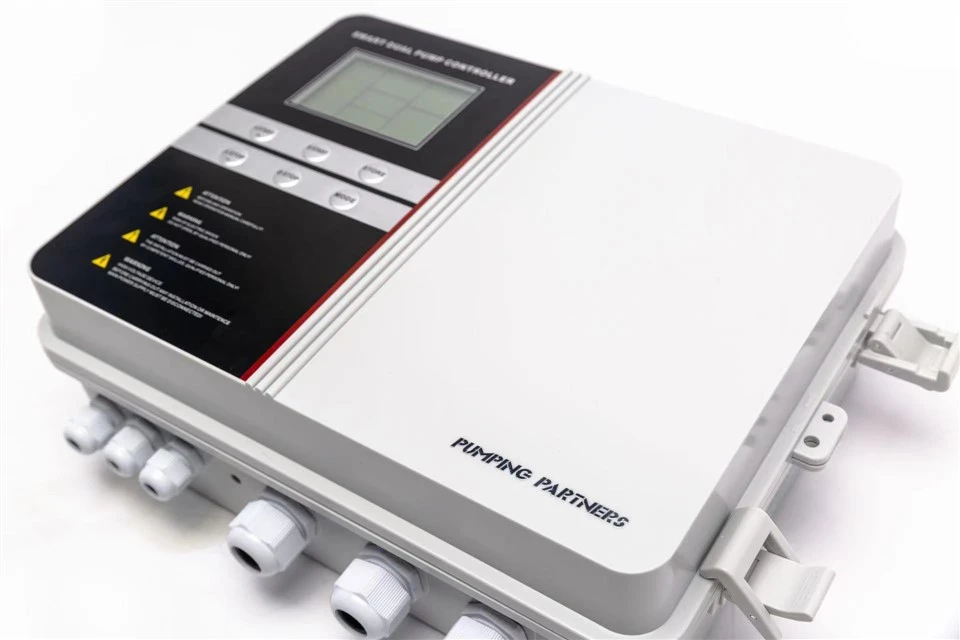

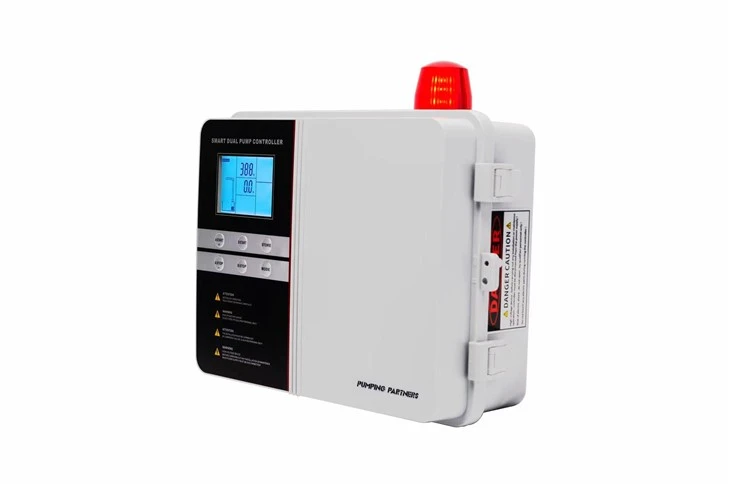

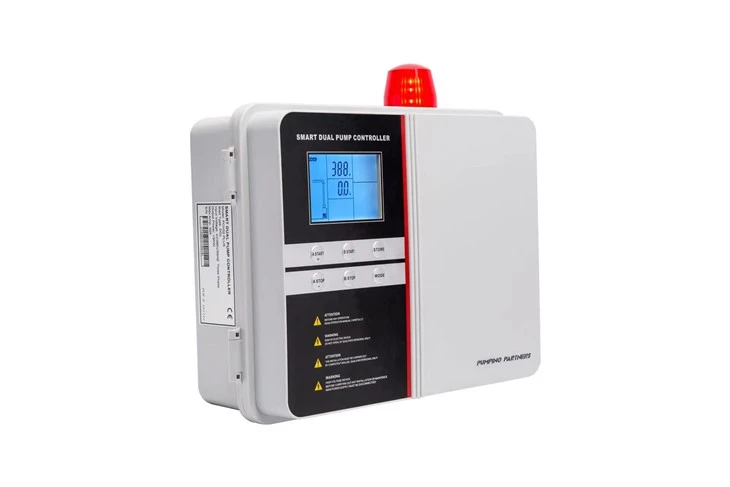

Sewer Pump Control Vaj Huam Sib Luag
Cov kav dej phwj tuaj tswj vaj huam sib luag PCH32 Plus, nws yog peb theem dual twj tso kua mis tswj vaj huam sib luag.
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia
JIT SMART tsuas yog tsom rau kev tsim, tsim, tsim, thiab kev lag luam twj tso kua mis tiv thaiv thiab tswj vaj huam sib luag rau cov twj ntse. Nrog rau ntau tshaj 20 xyoo ntawm kev txawj ntse nyob rau hauv lub twj tso kua mis tswj kev lag luam, peb tau paub zoo nyob rau hauv cov kev xav tau ntawm cov neeg siv thiab twj tso kua mis manufacturers thiab muaj peev xwm muab cov dej twj tso kua mis tswj thiab kev tiv thaiv kev daws teeb meem.
Cov khoom siv twj tso kua mis yog tsim los ntawm cov txheej txheem thermal relays, nruab nrab relays, tam sim no / voltage displaying meters, thiab lwm yam khoom siv hluav taws xob ua kom tiav qee yam kev tswj thiab kev tiv thaiv kev ua haujlwm. Thaum lub tshuab twj tso kua mis ib txwm muaj qhov zoo ntawm kev hloov pauv yooj yim thiab kev ua haujlwm ncaj, nws kuj muaj qhov tsis txaus ntseeg uas nws tsis tuaj yeem ua tau raws li qhov xav tau ntawm cov neeg siv khoom rau kev tswj lub twj tso kua mis thiab kev tiv thaiv kev hloov pauv. Cov no yog cov txiaj ntsig ntawm peb cov JIT maub los, uas tso cai rau cov neeg siv khoom yooj yim nkag mus rau hauv online software hloov khoom dua tshiab thiab cov khoom siv ua haujlwm zoo los pab txhawb cov khoom muag tom qab muag.
specification
|
Main technical yam ntxwv ntawm maub los |
||
|
Input zog |
AC 90V -440V |
|
|
Tso zis zog |
0 75-15kw |
|
|
Tswj kev ua haujlwm |
Ob chav ua kua theem tswj |
|
|
Siab hloov tswj |
||
|
Kev tswj qhov kub thiab txias |
||
|
Cov ntaub ntawv tseem ceeb |
||
|
Cov kua theem hloov mus deb |
Tsawg dua lossis sib npaug li 2000m |
|
|
Kev tiv thaiv muaj nuj nqi |
Qhuav khiav |
Lub twj tso kua mis |
|
Tshaj dhau |
Qhib theem |
|
|
Hauv qab / dhau voltage |
Theem rov qab |
|
|
Cov ntaub ntawv tseem ceeb ntawm installation |
||
|
Ua haujlwm kub |
-25 degree – +55 degree |
|
|
Ua haujlwm av noo |
20% - 90% txheeb ze humidity |
|
|
Qib kev tiv thaiv |
IP65 |
|
|
Installation txoj hauj lwm |
Ntsug |
|
|
Chav ntsuas qhov ntev (L x W x H) |
345*140*305 |
|
|
Unit hnyav (net) |
3.8kg ib |
|
tswj tus yam ntxwv
Nws pib / phau ntawv hom sib xyaw lossis Auto hom nkaus xwb
Main twj tso kua mis / standby twj tso kua mis hloov
Main twj tso kua mis / standby twj tso kua mis overtime alternating
Main twj tso kua mis / standby twj tso kua mis hloov tawm tsam malfunction
Standby twj tso kua mis koom nrog khiav yog tias xav tau
Tswj tus yam ntxwv
lwm yam nta
Cov yam ntxwv ntxiv.Txhua qhov kev tiv thaiv muaj peev xwm ua rau nws tus kheej ua haujlwm lossis xiam oob khab. Pump zaum kawg tsib cov ntaub ntawv ua haujlwm tsis zoo tau pom.
Pump nrog cumulative runtime qhia.
Txhawm rau xauv thiab qhib, nias tus yuam sij (settable).
Pump khiav cov ntaub ntawv yog qhia ntawm lub dynamic LCD.
Lub cim xeeb ua haujlwm thaum lub zog hluav taws xob thiab rov kho lub zog.
Pab lossis lov tes taw A / B twj tso kua mis kev ua haujlwm muaj peev xwm.
Lub sij hawm settable rau ncua sij hawm nyob rau hauv lub twj tso kua mis pib.Time settable rau lub twj tso kua mis nres ncua.
txuas cov teeb liab kis tau tus mob mus txog 1500 meters.
Chaw nres nkoj rau RS485 kev sib txuas.
Tam sim no DC24V pom thiab hnov suab ceeb toom (PCH 32 Plus nkaus xwb).
Cov ntawv qhia zaub mov parameter tuaj yeem siv los khaws cov maub los thiab twj tso kua mis hauv kev ua haujlwm zoo.
Txhawm rau khaws cov yeeb nkab dej, ob lub twj tso kua mis yuav teb ib tus zuj zus thaum qhia kom pib lossis nres.
Lub LCD module muaj cov neeg siv-phooj ywg interface ntawm tib neeg thiab tshuab.Txhua yam hluav taws xob
