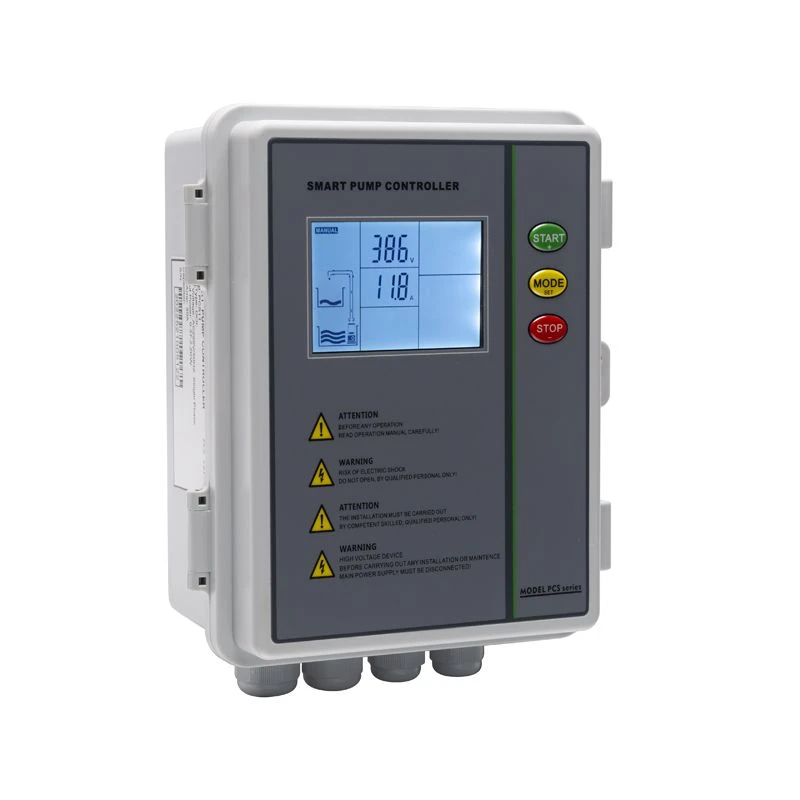

3 Theem Pump Controller
3 theem twj tso kua mis tswj PCS31, haum rau lub twj tso kua mis sib sib zog nqus, dej twj tso kua mis, lub twj tso kua mis thiab lwm yam twj tso kua mis.
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia
Haum rau cov twj tso kua mis, cov twj tso kua mis, cov twj tso kua mis sib sib zog nqus, thiab lwm yam twj tso kua mis yog lub twj tso kua mis peb-theem PCS31.
Tus maub los lub tswv yim ua haujlwm yooj yim yog kom ua tiav kev tiv thaiv thiab kev tswj tsis siv neeg los ntawm kev siv ib qho kev sib xyaw ua ke nrog cov kev pab cuam synthesis muaj nuj nqi raws li lub sensor lub qhov muag tso zis teeb liab.
Lub peev xwm loj yog siv los ntawm peb-theem twj tso kua mis tswj, ua kom muaj kev hloov kho tshiab.
Raws li kev ua haujlwm raug cai, tam sim no ntawm lub twj tso kua mis yog raug kaw los ntawm peb lub tsev ib qho tseem ceeb ntawm kev teeb tsa mechanism. Nws muaj peev xwm txheeb xyuas qhov kev tiv thaiv kev sib hloov qhuav, overload, thiab twj tso kua mis los ntawm kev ntsuas qhov tam sim no nyob rau hauv ntau yam mob.
Hauv kev sib piv rau lwm tus tswj hwm ntawm kev ua lag luam, PCS31 muaj kev tiv thaiv kev thim rov qab. Nrog rau qhov kev tiv thaiv no, txhua lub twj tso kua mis uas ua haujlwm yuav paub thaum lub sijhawm qhib tshwm sim.
Cov tsoos thawj siv ntawm kev hloov pauv hloov pauv
1. Cov dej yog hloov los ntawm lub tank uphead mus rau lub tank qis.
2. Lub borehole twj tso kua mis lub zog.
3. Cov dej ntws tawm.
Cov yam ntxwv tshwj xeeb siv tau thaum nws siv rau kev hloov dej.
activated water replenishment system txiav txim siab thaum ib qib kev sojntsuam txuas nrog.
Xav txog cov xwm txheej hauv qab no: cov dej hauv qab muaj lub tank sab sauv uas tsis muaj. Raws li tus qauv kev khiav hauj lwm logic, lub tank qis tsis tuaj yeem tso dej kom txog thaum cov kua theem mus txog qhov thib peb qhov kev sojntsuam. Yog tias lub hwj chim raug kaw thiab rov qab rov qab dua, tus tswj xyuas tsuas yog txiav txim siab seb cov dej puas nyob hauv qhov kev sojntsuam thib ob es tsis txiav txim siab seb qhov kev sojntsuam thib peb tau mus txog. Nws yuav rov qab mus rau nws qhov kev ua haujlwm zoo tom qab pib lub voj voog.
Main Parameter teeb tsa:
|
Para-meter |
Kev piav qhia |
Ntau yam |
Default tus nqi |
|
001 |
Qhuav khiav tiv thaiv trip amps. |
0.0 A |
|
|
002 |
Overload tiv thaiv trip amps. |
26 A (0 37-2.2KW, 0 75-7.5kW) 52A ({1}}kW) |
|
|
003 |
Stall tiv thaiv trip amps. |
33A (0 75-7.5kW) 66A (11-15kW) |
|
|
004 |
Nyob rau hauv voltage tiv thaiv mus txawv tebchaws voltage. |
175V (ib theem) 300V (Peb theem) |
|
|
005 |
Tshaj voltage tiv thaiv tawm mus voltage. |
253V (ib theem) 439V (Peb theem) |
|
|
006 |
Qhuav khiav tiv thaiv tawm mus teb lub sij hawm. |
0 – 254 sec |
6 vib nas this |
|
007 |
Qhuav khiav tiv thaiv rov qab lub sijhawm. |
0 – 254 feeb |
5 feeb |
|
008 |
Timer muaj nuj nqi yog tias ua haujlwm nrog cov ntawv thov |
00 – 01 |
00 (tsis yog) [01 yog] |
|
009 |
Pump khiav lub sijhawm. |
0 – 254 feeb |
5 feeb (Tsuas yog tias 008 Enabled lossis hloov pauv ntawm 10 txoj haujlwm) |
|
010 |
Pump nres lub sijhawm. |
0 – 254 feeb |
5 feeb (Tsuas yog tias 008 Enabled lossis hloov pauv ntawm 10 txoj haujlwm) |
|
011 |
Pump nres timer nyob rau hauv phau ntawv lub xeev. |
0 – 254 feeb |
0 feeb (0=inactive) |
|
012 |
LCD & khawm ua haujlwm xauv muaj nuj nqi. |
00 - 01 |
00 (Xauv) [01 xauv] |
|
|
|||
|
013 |
Qhib theem & theem rov qab tiv thaiv. [00 (qhib theem & theem rov qab OFF)] [01 (qhib theem OFF, theem thim rov qab ON)] [02 (qhib theem ON, theem thim rov qab OFF)] [03 (qhib theem & theem rov qab ON)] |
00 - 03 |
03 (parameter 013 tsuas yog muaj rau peb theem) Tom qab teeb tsa, thov lub hwj chim tawm ces nws tuaj yeem tau txais. |
|
Cov kev ntsuas hauv qab no tsuas yog pom rauthermal tswj thaum txuas nrogPIB 100 Tnws expansion module yog nruab. |
|||
|
014 |
Pump pib kub. Lub twj tso kua mis yuav pib hauv qab qhov ntsuas kub. |
0 - 100 degree |
35 degree |
|
015 |
Pump nres kub. Lub twj tso kua mis yuav nres siab tshaj qhov ntsuas kub. |
0 - 100 degree |
45 degree |
Lwm yam nta
1. Ntau qhov kev siv rau cov kev xaiv uas siv qhov ntsuas qhov ntsuas thiab qhov hloov pauv.
2. Kev tiv thaiv kev qhib theem, theem thim rov qab, overload, undervoltage, stalled twj, qhuav khiav, thiab overvoltage.
3. Ntau yam IP 65 kev xaiv vaj tsev me me
4. Ib tug neeg khawm rau calibrating tsis.
5. Pump khiav raws li txoj cai yog pom ntawm lub LCD.
6. Pump cumulative runtime verification
7. Tso tsib qhov yuam kev kawg thiab xyuas lawv.
8. Lub twj tso kua mis tuaj yeem nres tau nyob rau hauv Manual hom los ntawm kev teeb tsa lub sijhawm.
9. Software tuaj yeem hloov kho kom tau raws li qhov chaw tshwj xeeb.
1 0. Kev khiav hauj lwm voltage: 0.75-4kw, 5.5-7.5kw, 11-15kw
11. Ua tiav qhov hluav taws xob ntawm 280 thiab 460 volts.
